  • Coxreels TMP-N-350 Supreme Duty Spring Driven Hose Reel 3/8inx50ft 3000PSI

More Views

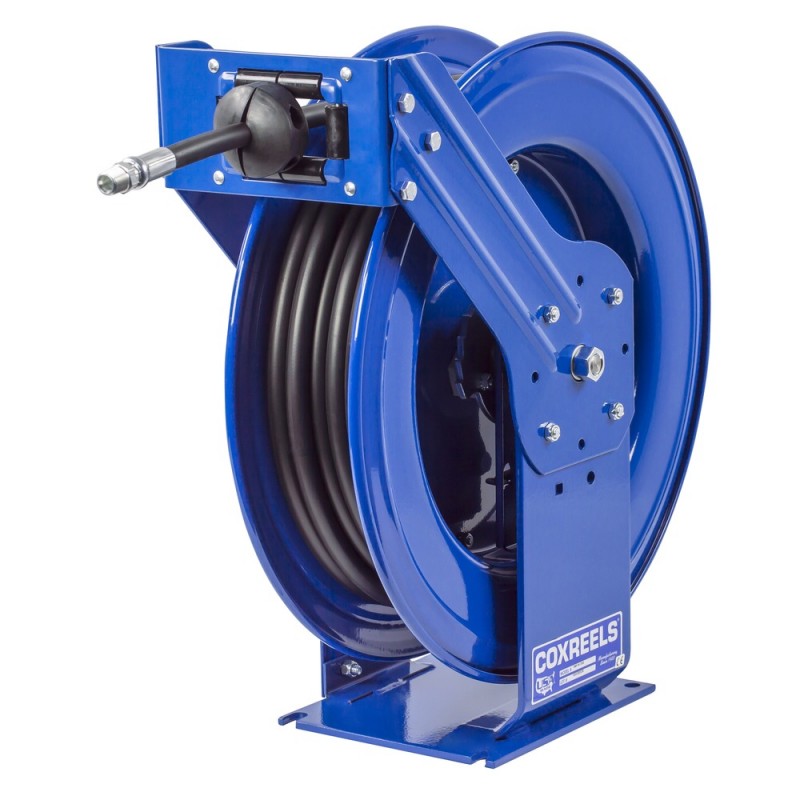

Coxreels TMP-N-350 Supreme Duty Spring Driven Hose Reel 3/8inx50ft 3000PSI

COX TMP-N-350

Availability: In stock ,Online Only

$725.05  /EA

Quick Overview

Coxreels TMP-N-350 Supreme Duty Spring Driven Hose Reel 3/8inx50ft 3000PSI

Estimated Shipping Date
12/13/2024 - 01/28/2025

Be the first to review this product

Details

Series Description

COXREELS® T Series “Truck Mount” spring driven hose reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal-style arms and Coxreels’ Super Hub™ provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments.

Swivel/Slip Ring

  • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet (Zinc plated Steel swivel on HP models)
  • Swivel Seals: NITRILE
  • Electroless nickel plated steel swivel on 1" models

Design and Structure

  • Sturdy dual pedestal reel features Coxreels’ exclusive Super Hub™ dual axle support system
  • Built for rugged mobile applications
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Stainless Steel rollers on 3⁄4" & 1" models
  • Solid one piece, heavy gauge 1⁄4" steel base & support posts for maximum strength
  • 1" solid steel axle & lubricated precision bearings for smooth rotation

Retraction

  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

Possible Applications

  • Aviation
  • Construction
  • Industrial
  • Hose & Rubber
  • Industrial MRO
  • Lubrication
  • Military & Governement
  • Mining
  • Power Transmission

Additional Information

SKU COX TMP-N-350
Weight (lbs) 74.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Aviation, Construction, Hose & Rubber, Industrial, Industrial MRO, Lubrication, Military & Governement, Mining, Power Transmission
Product PDF pm-001-spring-rewind-reels.pdf
Product Width (in) 9.38
Product Height (in) 21.25
Product Length (in) 19.50
Reel Bearings 1" Permanently Lubricated Precision Bearings
Reel Capacity 50'
Construction Steel
Reel Design Dual Pedestal
Drive Type Spring Driven
Hose Ends 3/8" (M)NPT
Hose Inner Diameter (I.D.) 3/8"
Hose Inlet 3/8" (F)NPT
Hose Length (If Included) 50'
Hose Max PSI 3000
Hose Seal Type Nitrile
Hose Swivel Material Brass
Hose Outer Diameter (O.D.) 11/16"
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series T Series
Reel Type Hose
