  • Coxreels SHWL-N-1100 Spring Driven Welding Hose Reel 1/4inx100ft oxy-acet 200PSI

More Views

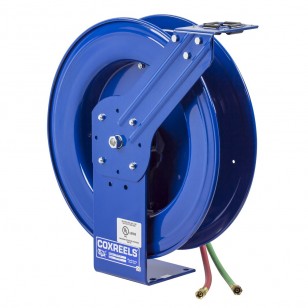

Coxreels SHWL-N-1100 Spring Driven Welding Hose Reel 1/4inx100ft oxy-acet 200PSI

COX SHWL-N-1100

Availability: In stock ,Online Only

$599.65  /EA

Quick Overview

Coxreels SHWL-N-1100 Spring Driven Welding Hose Reel 1/4inx100ft oxy-acet 200PSI

Estimated Shipping Date
01/17/2025 - 02/26/2025

Be the first to review this product

Details

Series Description

COXREELS® P-W and SHW Series spring driven “Welding” hose reels are the ideal solution for managing bulky twin line welding hose. The P-W Series, like the P Series, is more compact in size and shares the reputation for long lasting performance. The SHW Series has a larger chassis and frame to accommodate longer lengths of welding hose and Coxreels’ original Super Hub dual axle support system for increased stability during operation, less vibration and greater structural integrity.

Swivel/Slip Ring

  • External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
  • Swivel lock bracket ensures maximum safety
  • Swivel Seals: VITON®

Design and Structure

  • Designed for Oxy-Acetylene or “T” grade welding hose
  • Single pedestal reel with space saving design facilitates workplace organization
  • Guide arm adjusts to wall, floor & overhead positions
  • Solid one piece, heavy gauge 1⁄4" steel base & support post for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation
  • Coxreels’ exclusive Super Hub™ dual axle support system

Retraction

  • Controlled retraction speed up to 80% slower on EZ-Coil® models
  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position non-sparking lock ratchet mechanism secures hose at desired length

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • WELDING GAS SWIVEL - External 90? full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.

Possible Applications

  • Construction
  • Industrial
  • Hose & Rubber
  • Industrial MRO
  • Power Transmission

Additional Information

SKU COX SHWL-N-1100
Weight (lbs) 62.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Construction, Hose & Rubber, Industrial, Industrial MRO, Power Transmission
Product PDF pm-001-spring-rewind-reels.pdf
Product Width (in) 10.25
Product Height (in) 25.50
Product Length (in) 24.00
Reel Bearings 1" Permanently Lubricated Precision Bearings
Reel Capacity 100'
Construction Steel
Reel Design Single Pedestal
Drive Type Spring Driven
Hose Inner Diameter (I.D.) 1/4"
Hose Inlet 1/4" (F)NPT
Hose Length (If Included) 100'
Hose Max PSI 200
Hose Seal Type Viton
Hose Swivel Material Brass
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series SHW Series
Reel Type Specialty
