  • Coxreels SD-35 Spring Driven Static Discharge Cable Reel 35ft

More Views

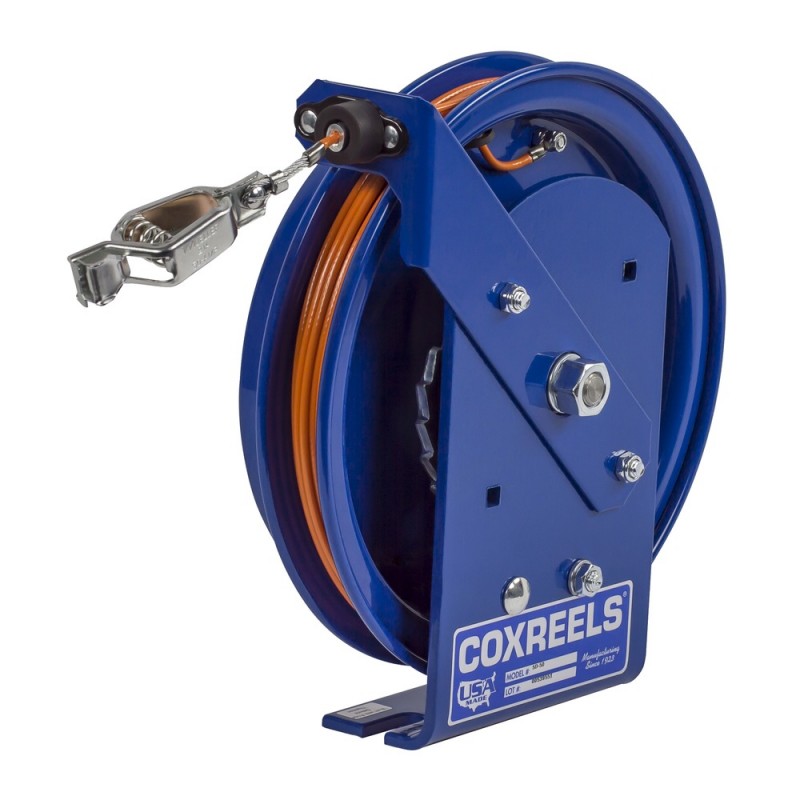

Coxreels SD-35 Spring Driven Static Discharge Cable Reel 35ft

COX SD-35

Availability: In stock ,Online Only

$270.54  /EA

Quick Overview

Coxreels SD-35 Spring Driven Static Discharge Cable Reel 35ft

Estimated Shipping Date
12/12/2024 - 01/27/2025

Be the first to review this product

Details

Series Description

COXREELS® SD and SDH Series “Static Discharge” cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion. Static discharge or grounding reels are commonly paired with fuel hose reels found on page 33.

Swivel/Slip Ring

  • Available with 7 strand x 7 wire galvanized steel or stainless steel 3⁄32" cable
  • High visibility orange vinyl cable cover (O.D.= 5⁄32" with cable cover)
  • Includes cable, ball stop & 50 Amp grounding clamp (100 Amp copper grounding clamp available, consult factory)

Design and Structure

  • Compact static discharge cable reel available in spring rewind or direct hand crank retraction
  • Commonly paired with fuel reels & used in combustible environment for grounding purposes
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1⁄4" steel base for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation
  • Bottom of base is un-powder coated to ground reel

Retraction

  • Controlled retraction speed up to 80% slower on EZ-Coil® models :: See page 7 for details
  • (On SD Series only) Enclosed factory tuned & matched cartridge-style spring motor
  • (On SD Series only) Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • (On SD Series only) Multi-position non-sparking lock ratchet mechanism secures cable at desired length
  • (On SDH Series only) Simple design with direct hand crank action

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
  • MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • STEEL CABLE - 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber cable stop, 50 amp grounding clamp, and sturdy permanently lubricated precision bearings.

Possible Applications

  • Aviation
  • Military & Governement
  • Mining

Additional Information

SKU COX SD-35
Weight (lbs) 18.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Aviation, Military & Governement, Mining
Product PDF pm-005-cord-cable-reels.pdf
Product Width (in) 3.88
Product Height (in) 11.50
Product Length (in) 11.00
Reel Bearings 1" Permanently Lubricated Precision Bearings
Reel Capacity 35'
Cable Length 35'
Construction Steel
Reel Design Single Pedestal
Drive Type Spring Driven
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series SD Series
Reel Type Cable
