  • Coxreels P-WC17L-3520 Spring Driven Welding Cable Reel 2/0x35ft 450AMP no cable

More Views

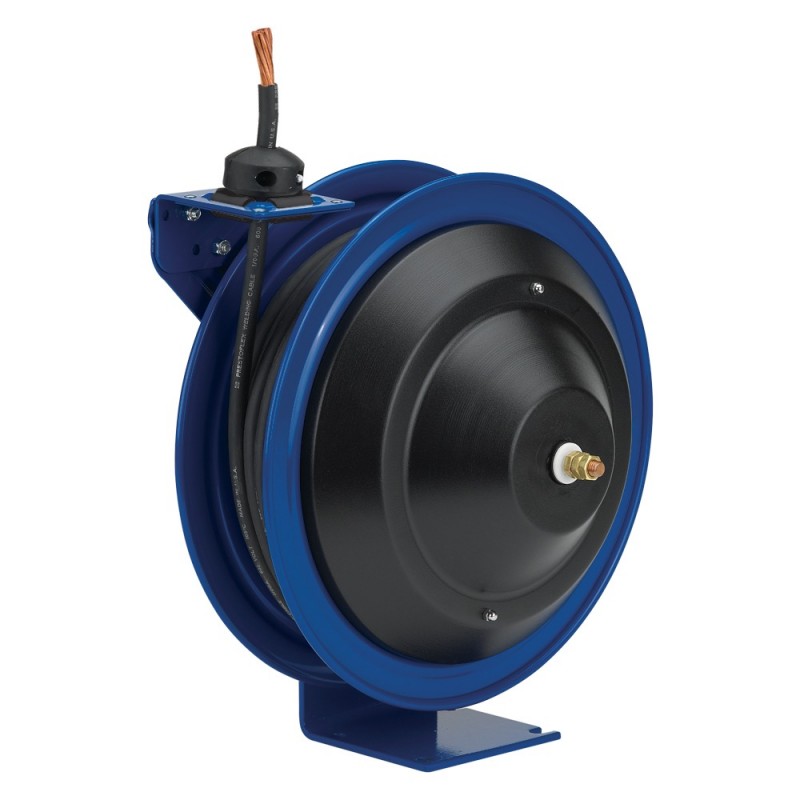

Coxreels P-WC17L-3520 Spring Driven Welding Cable Reel 2/0x35ft 450AMP no cable

COX P-WC17L-3520

Availability: In stock ,Online Only

$713.33  /EA

Quick Overview

Coxreels P-WC17L-3520 Spring Driven Welding Cable Reel 2/0x35ft 450AMP no cable

Estimated Shipping Date
01/20/2025 - 02/28/2025

Be the first to review this product

Details

Series Description

COXREELS® P-WC Series spring driven “Welding Cable” reels protect and extend the life of your welding cable by neatly and conveniently storing it on a 25, 35 or 50 foot self-retracting welding cable reel. They are the solution for keeping your work area safe, organized and efficient.

Swivel/Slip Ring

  • External, easily accessible heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
  • Electrical current runs through a 450 AMP rated slip ring

Design and Structure

  • Designed for electrode & grounding lead applications (each lead requires an individual reel)
  • Single pedestal reel with space saving design facilitates workplace organization
  • Welding cable clamp available (see below)
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1⁄4" steel base & support post for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation

Retraction

  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures cable atdesired length

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • COMPONENT COVER - External, easily accesible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability and professional grade strenght without the weight.Exclusive Super Hub™dual axle support system.
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.

Possible Applications

  • Construction
  • Industrial
  • Hose & Rubber
  • Industrial MRO

Additional Information

SKU COX P-WC17L-3520
Weight (lbs) 42.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Construction, Hose & Rubber, Industrial, Industrial MRO
Product PDF pm-005-cord-cable-reels.pdf
Product Width (in) 11.00
Product Height (in) 18.25
Product Length (in) 17.25
Reel Bearings 1" Permanently Lubricated Precision Bearings
Reel Capacity 35'
Cable Amps 450
Cable Gauge 2/0
Cable Length 35'
Cable Volts 600
Construction Steel
Reel Design Single Pedestal
Drive Type Spring Driven
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series P-WC Series
Reel Type Specialty
