  • Coxreels P-WC13L-5004 Spring Driven Welding Cable Reel 4GAx50ft 150AMP no cable

More Views

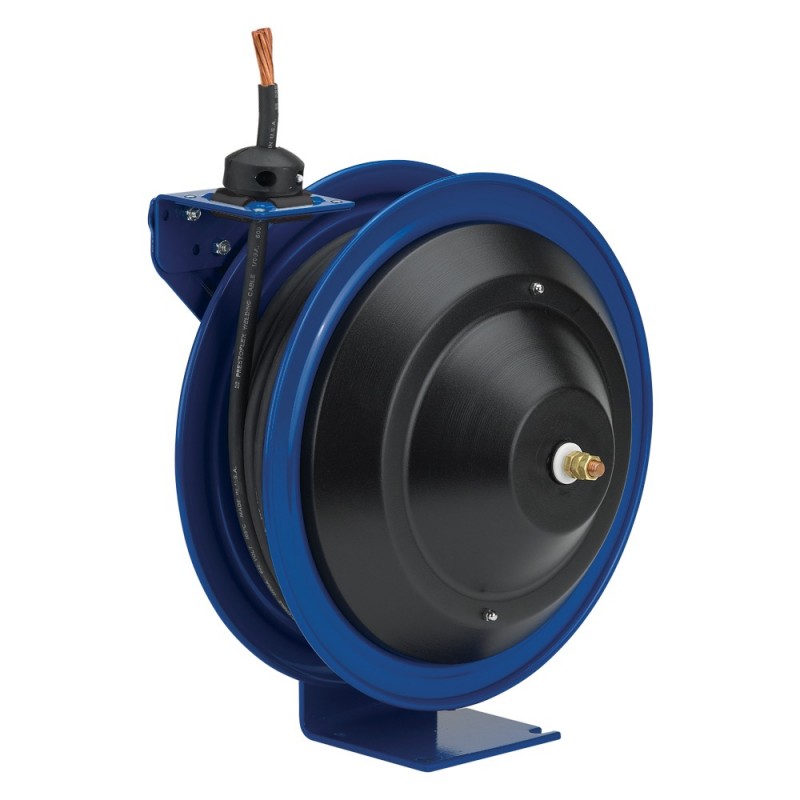

Coxreels P-WC13L-5004 Spring Driven Welding Cable Reel 4GAx50ft 150AMP no cable

COX P-WC13L-5004

Availability: In stock ,Online Only

$591.58  /EA

Quick Overview

Coxreels P-WC13L-5004 Spring Driven Welding Cable Reel 4GAx50ft 150AMP no cable

Estimated Shipping Date
12/13/2024 - 01/28/2025

Be the first to review this product

Details

Series Description

COXREELS® P-WC Series spring driven “Welding Cable” reels protect and extend the life of your welding cable by neatly and conveniently storing it on a 25, 35 or 50 foot self-retracting welding cable reel. They are the solution for keeping your work area safe, organized and efficient.

Swivel/Slip Ring

  • External, easily accessible heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
  • Electrical current runs through a 450 AMP rated slip ring

Design and Structure

  • Designed for electrode & grounding lead applications (each lead requires an individual reel)
  • Single pedestal reel with space saving design facilitates workplace organization
  • Welding cable clamp available (see below)
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1⁄4" steel base & support post for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation

Retraction

  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures cable atdesired length

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • COMPONENT COVER - External, easily accesible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability and professional grade strenght without the weight.Exclusive Super Hub™dual axle support system.
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.

Possible Applications

  • Construction
  • Industrial
  • Hose & Rubber
  • Industrial MRO

Additional Information

SKU COX P-WC13L-5004
Weight (lbs) 28.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Construction, Hose & Rubber, Industrial, Industrial MRO
Product PDF pm-005-cord-cable-reels.pdf
Product Width (in) 8.50
Product Height (in) 14.50
Product Length (in) 13.75
Reel Bearings 1" Permanently Lubricated Precision Bearings
Reel Capacity 50'
Cable Amps 150
Cable Gauge 4GA
Cable Length 50'
Cable Volts 600
Construction Steel
Reel Design Single Pedestal
Drive Type Spring Driven
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series P-WC Series
Reel Type Specialty
