  • Coxreels P-MPL-425 Performance Spring Driven Hose Reel 1/2inx25ft no hose

More Views

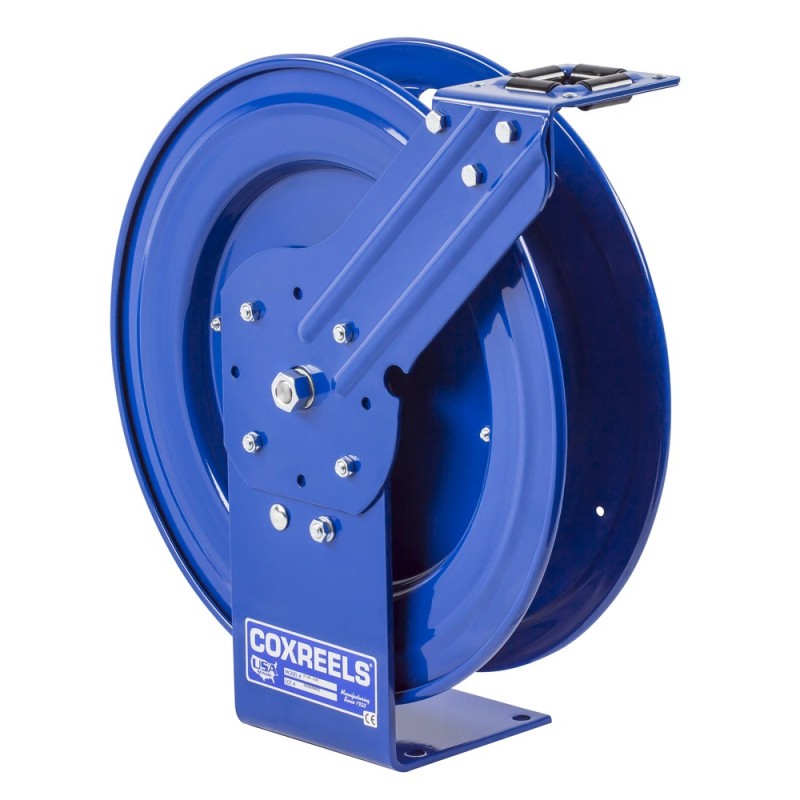

Coxreels P-MPL-425 Performance Spring Driven Hose Reel 1/2inx25ft no hose

COX P-MPL-425

Availability: In stock ,Online Only

$369.74  /EA

Quick Overview

Coxreels P-MPL-425 Performance Spring Driven Hose Reel 1/2inx25ft no hose

Estimated Shipping Date
01/20/2025 - 02/28/2025

Be the first to review this product

Details

Series Description

COXREELS® P Series “Performance” spring driven hose reels have a long history of dependability and trouble free performance. Their compact space-saving size and heavy duty construction make them highly versatile and virtually indestructible. Time-tested proven components, superior design and craftsmanship have contributed to it’s worldwide reputation as the most trusted hose reel.

Swivel/Slip Ring

  • xternal fluid path with machined from solid brass 90° full-flow NPT swivel inlet.
  • Swivel Seals: NITRILE

Design and Structure

  • turdy single pedestal reel with space saving design facilitates workplace organization.
  • Guide arm adjusts to wall, floor, vehicle & overhead positions.
  • Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability.
  • 1" solid steel axle and lubricated precision bearings for smooth rotation.

Retraction

  • nclosed factory tuned and matched cartridge-style spring motor.
  • Non-corrosive stainless steel spring, pawl and zinc plated ratchet.
  • Multi-position lock ratchet mechanism secures hose at desired length.

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,and sturdy permanently lubricated precision bearings.

Possible Applications

  • Automotive
  • Construction
  • Industrial
  • Hose & Rubber
  • Industrial MRO
  • Lubrication
  • Mining

Additional Information

SKU COX P-MPL-425
Weight (lbs) 42.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Automotive, Construction, Hose & Rubber, Industrial, Industrial MRO, Lubrication, Mining
Product PDF pm-001-spring-rewind-reels.pdf
Product Width (in) 7.00
Product Height (in) 18.63
Product Length (in) 17.13
Reel Bearings 1" Permanently Lubricated Precision Bearings
Reel Capacity 25'
Construction Steel
Reel Design Single Pedestal
Drive Type Spring Driven
Hose Inner Diameter (I.D.) 1/2"
Hose Inlet 1/2" (F)NPT
Hose Length (If Included) 25'
Hose Max PSI 2500
Hose Seal Type Nitrile
Hose Swivel Material Brass
Hose Outer Diameter (O.D.) 13/16"
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series P Series
Reel Type Hose
