  • Coxreels LG-LPL-115 Compact Spring Driven Hose Reel 1/4inx15ft 300PSI no hose

More Views

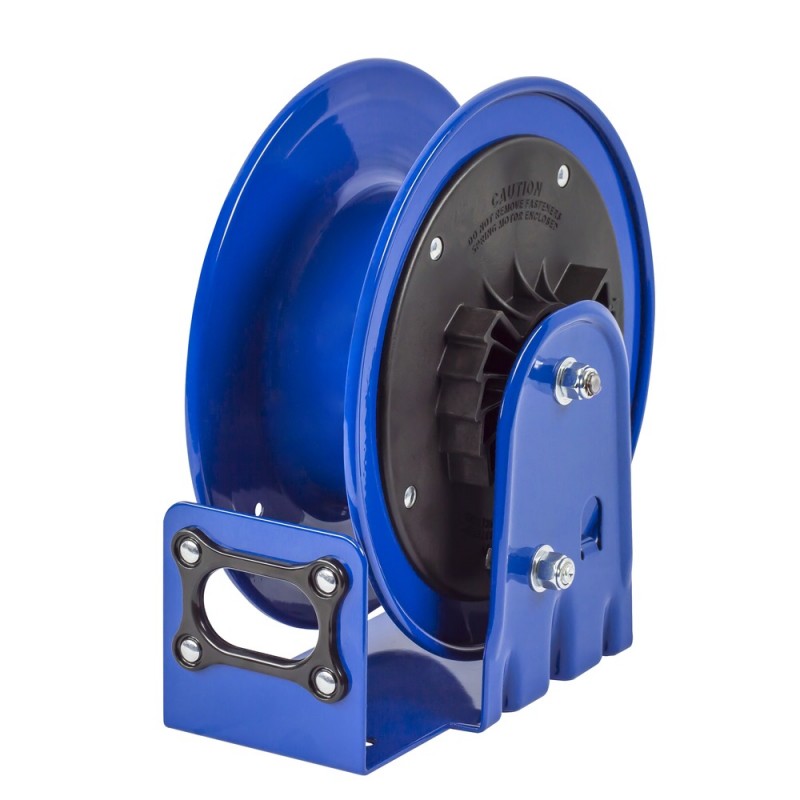

Coxreels LG-LPL-115 Compact Spring Driven Hose Reel 1/4inx15ft 300PSI no hose

COX LG-LPL-115

Availability: In stock ,Online Only

$192.09  /EA

Quick Overview

Coxreels LG-LPL-115 Compact Spring Driven Hose Reel 1/4inx15ft 300PSI no hose

Estimated Shipping Date
01/17/2025 - 02/26/2025

Be the first to review this product

Details

Series Description

COXREELS® LG Series “Little Giant” is the first lightweight - heavy duty reel on the market. The LG is perfect for commercial or industrial applications where space or budget is limited. It is extremely lightweight and compact and can install almost anywhere. This little giant can accept either a 1/4” or 3/8” hose to tackle the jobs of reels almost double its size.

Swivel/Slip Ring

  • xternal fluid path with machined from solid brass 90° full-flow NPT swivel inlet.
  • Swivel Seals: NITRILE

Design and Structure

  • ompact and lightweight spring driven hose reel save space and facilitate workplace organization.
  • CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
  • Solid one piece, 12GA steel base and support post for maximum stability.
  • ½” solid steel axle and lubricated precision bearings for smooth rotation.

Retraction

  • nclosed factory tuned and matched cartridge-style spring motor.
  • Non-corrosive CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • RATCHET HUB - Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 12GA STEEL BASE - Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
  • GROMMET - CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.

Possible Applications

  • Industrial
  • Hose & Rubber
  • Industrial MRO

Additional Information

SKU COX LG-LPL-115
Weight (lbs) 8.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Hose & Rubber, Industrial, Industrial MRO
Product PDF pm-120-lg-series-reels.pdf
Product Width (in) 5.25
Product Height (in) 10.63
Product Length (in) 10.50
Reel Bearings 1/2" Permanently Lubricated Precision Bearings
Reel Capacity 15'
Construction Steel
Reel Design Single Pedestal
Drive Type Spring Driven
Hose Inner Diameter (I.D.) 1/4"
Hose Inlet 1/4" (F)NPT
Hose Length (If Included) 15'
Hose Max PSI 300
Hose Seal Type Nitrile
Hose Swivel Material Brass
Hose Outer Diameter (O.D.) 1/2"
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series LG Series
Reel Type Hose
