  • Coxreels EZ-THP-375 Safety System Spring Driven Hose Reel 3/8inx75ft 4000PSI

More Views

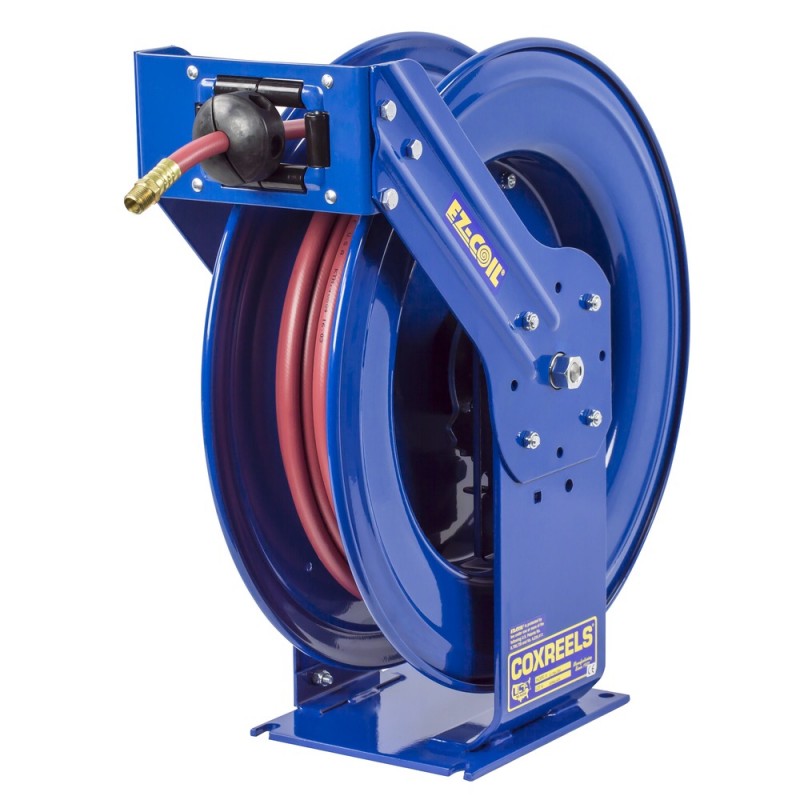

Coxreels EZ-THP-375 Safety System Spring Driven Hose Reel 3/8inx75ft 4000PSI

COX EZ-THP-375

Availability: In stock ,Online Only

$1,034.37  /EA

Quick Overview

Coxreels EZ-THP-375 Safety System Spring Driven Hose Reel 3/8inx75ft 4000PSI

Estimated Shipping Date
01/17/2025 - 02/26/2025

Be the first to review this product

Details

Series Description

COXREELS® T Series “Truck Mount” spring driven hose reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal-style arms and Coxreels’ Super Hub™ provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments.

Swivel/Slip Ring

  • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet (Zinc plated steel swivel on HP models)
  • Swivel Seals: NITRILE
  • Electroless nickel plated steel swivel on 1” models

Design and Structure

  • Sturdy dual pedestal reel features Coxreels’ exclusive Super Hub™ dual axle support system
  • Built for rugged mobile applications
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Stainless Steel rollers on 3/4” & 1” models
  • Solid one piece, heavy gauge 1/4” steel base & support posts for maximum strength
  • 1” solid steel axle & lubricated precision bearings for smooth rotation

Retraction

  • Controlled retraction speed up to 80% slower on EZ-Coil® models
  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SWIVEL - Machined from zinc plated steel 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

Possible Applications

  • Aviation
  • Construction
  • Industrial
  • Hose & Rubber
  • Industrial MRO
  • Lubrication
  • Military & Governement
  • Mining

Additional Information

SKU COX EZ-THP-375
Weight (lbs) 98.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Aviation, Construction, Hose & Rubber, Industrial, Industrial MRO, Lubrication, Military & Governement, Mining
Product PDF pm-001-spring-rewind-reels.pdf
Product Width (in) 9.38
Product Height (in) 25.50
Product Length (in) 24.00
Reel Bearings 1" Permanently Lubricated Precision Bearings
Construction Steel
Reel Design Dual Pedestal
Drive Type EZ-Coil®
Hose Ends 3/8" (M)NPT
Hose Inner Diameter (I.D.) 3/8"
Hose Inlet 3/8" (F)NPT
Hose Length (If Included) 75'
Hose Max PSI 4000
Hose Seal Type Nitrile
Hose Swivel Material Zinc Plated Steel
Hose Outer Diameter (O.D.) 11/16"
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series EZ-T Series
Reel Type Hose
