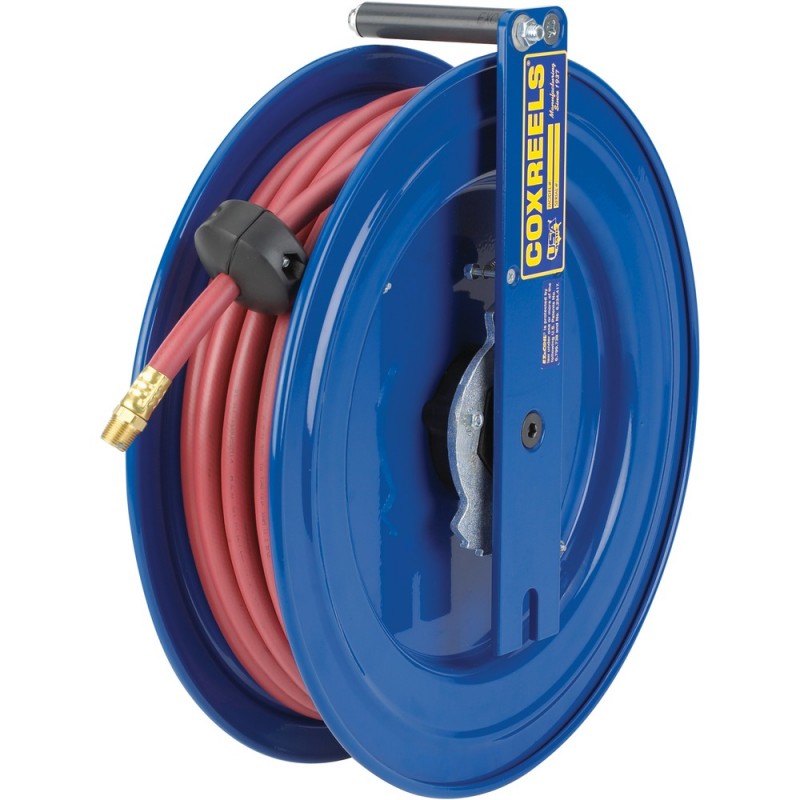

Coxreels EZ-SR15L-L135 Safety System Side Mount Spring Driven Hose Reel 1/4in

COX EZ-SR15L-L135

Availability: In stock ,Online Only

$303.91  /EA

Quick Overview

Coxreels EZ-SR15L-L135 Safety System Side Mount Spring Driven Hose Reel 1/4in

Estimated Shipping Date
01/17/2025 - 02/26/2025

Be the first to review this product

Details

Series Description

COXREELS® S Series “ Side Mount” spring driven hose reels for cabinet mount are compact, versatile and unique in the way they mount and operate. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation applications. S Series is available for air/water, oil, grease, oxy-acetylene and T Grade gas welding hose. The 360° hose direction allows the user to operate the reel in any direction the job demands. Common applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles or any flat vertical surface.

Swivel/Slip Ring

  • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet (Zinc plated steel swivel on HP models)
  • Swivel Seals: NITRILE
  • External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel (On SW Models)
  • Swivel Seals: VITON®

Design and Structure

  • Side mount design for vertical flat surface, cabinet or enclosed space mounts
  • 2-bolt mounting pattern easily mounts & detaches for temporary or permanent installation
  • Solid one piece, heavy gauge 1/4” steel arm base for maximum stability
  • 1” solid steel axle & lubricated precision bearings for smooth rotation
  • Hose control bar prevents hose from slipping off the discs

Retraction

  • Controlled retraction speed up to 80% slower on EZ-Coil® models :: See page 7 for details
  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length.
  • Non-locking, less ratchet option available (add suffix –BXC)

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • SIDE MOUNT DESIGN - Mount right for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
  • CONTROL BAR - Hose control bar prevents hose from slipping off the disc.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.

Possible Applications

  • Automotive
  • Construction
  • Industrial
  • Hose & Rubber
  • Industrial MRO

Additional Information

SKU COX EZ-SR15L-L135
Weight (lbs) 20.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Automotive, Construction, Hose & Rubber, Industrial, Industrial MRO
Product PDF pm-117-s-series-reels.pdf
Product Width (in) 6.00
Product Height (in) 16.50
Product Length (in) 15.25
Reel Bearings 1" Permanently Lubricated Precision Bearings
Reel Capacity 35'
Construction Steel
Reel Design Side Mount
Drive Type EZ-Coil®
Hose Ends 1/4" (M)NPT
Hose Inner Diameter (I.D.) 1/4"
Hose Inlet 1/4" (F)NPT
Hose Length (If Included) 35'
Hose Max PSI 300
Hose Seal Type Nitrile
Hose Swivel Material Brass
Hose Outer Diameter (O.D.) 1/2"
Reel Finish Powder Coated
Reel Mounting Floor, Vehicle, Wall
Series EZ-S Series
Reel Type Hose
