  • Coxreels EZ-SD-75-1 Safety System Spring Driven Static Discharge Cord Reel 75ft

More Views

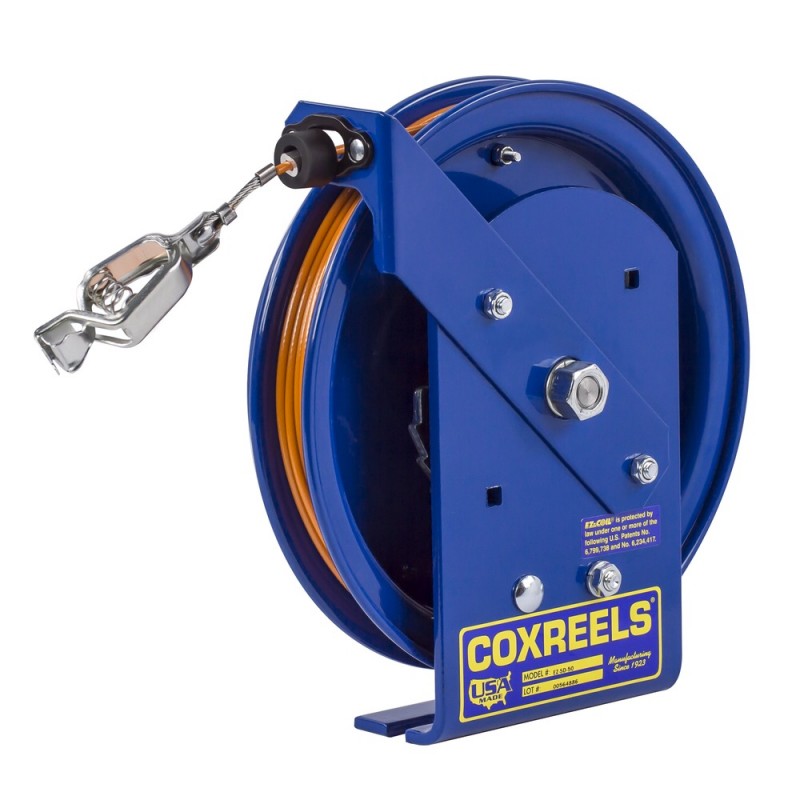

Coxreels EZ-SD-75-1 Safety System Spring Driven Static Discharge Cord Reel 75ft

COX EZ-SD-75-1

Availability: In stock ,Online Only

$498.70  /EA

Quick Overview

Coxreels EZ-SD-75-1 Safety System Spring Driven Static Discharge Cord Reel 75ft

Estimated Shipping Date
01/20/2025 - 02/28/2025

Be the first to review this product

Details

Series Description

COXREELS® SD and SDH Series “Static Discharge” cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion. Static discharge or grounding reels are commonly paired with fuel hose reels found on page 33.

Swivel/Slip Ring

  • Available with 7 strand x 7 wire galvanized steel or stainless steel cable
  • High visibility orange vinyl cable cover
  • Includes cable, ball stop & 50 Amp grounding clamp (100 Amp copper grounding clamp available, consult factory)

Design and Structure

  • Compact static discharge cable reel available in spring rewind or direct hand crank retraction
  • Commonly paired with fuel reels & used in combustible environment for grounding purposes
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1/4” steel base for maximum stability
  • 1” solid steel axle & lubricated precision bearings for smooth rotation
  • Bottom of base is un-powder coated to ground reel

Retraction

  • Controlled retraction speed up to 80% slower on EZ-Coil® models :: See page 7 for details
  • Enclosed factory tuned & matched cartridge-style spring motor on SD Series
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet on SD Series
  • Multi-position non-sparking lock ratchet mechanism secures cable at desired length on SD Series
  • Simple design with direct hand crank action on SDH Series

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
  • MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • STEEL CABLE - 7 strand x 7 wire stainless steel cable. High visibility orange vinyl cable cover.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber cable stop, 50 amp grounding clamp, and sturdy permanently lubricated precision bearings.

Possible Applications

  • Aviation
  • Military & Governement
  • Mining

Additional Information

SKU COX EZ-SD-75-1
Weight (lbs) 31.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Aviation, Military & Governement, Mining
Product PDF pm-005-cord-cable-reels.pdf
Product Width (in) 4.00
Product Height (in) 15.00
Product Length (in) 14.50
Reel Bearings 1" Permanently Lubricated Precision Bearings
Cable Gauge 5/32"
Cable Length 75'
Construction Steel
Reel Design Single Pedestal
Drive Type EZ-Coil®
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series EZ-SD Series
Reel Type Cable
