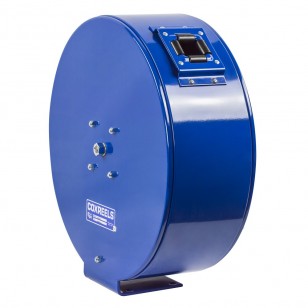

Coxreels ENL-N-360 Spring Driven Enclosed Hose Reel 3/8inx60ft 300PSI no hose

COX ENL-N-360

Availability: In stock ,Online Only

$514.03  /EA

Quick Overview

Coxreels ENL-N-360 Spring Driven Enclosed Hose Reel 3/8inx60ft 300PSI no hose

Estimated Shipping Date
04/18/2024 - 05/30/2024

Details

Series Description

COXREELS® EN Series “Enclosed” spring driven hose reels are protected by a powder coated steel casing that shields out the elements to protect and extend the life of the reel, the hose and the components inside. It adds a neat, tidy, aesthetic appearance to work environments that demand a clean and professional look. The 3 piece casing is easy to assemble and disassemble for simple installation and maintenance.

Swivel/Slip Ring

  • Machined from solid brass 90° full-flow NPT swivel inlet (Zinc plated steel swivel on HP models)
  • Swivel Seals: NITRILE

Design and Structure

  • Sturdy enclosed reel for aesthetic purposes & greater hose protection
  • Models with size index #2 feature Coxreels’ exclusive Super Hub™ dual axle support system
  • Solid one piece, heavy gauge 1/4” steel base & support post for maximum stability
  • 1” solid steel axle & lubricated precision bearings for smooth rotation
  • Heavy gauge steel 3-piece casing with adjustable hose roller guide

Retraction

  • Controlled retraction speed up to 80% slower on EZ-Coil® models :: See page 7 for details
  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.Exclusive Super Hub™dual axle support system.
  • ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Heavy gauge steel 3-piece casing with adjustable hose roller guide.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet mechanism, and lubricated precision bearings.

Possible Applications

  • Lubrication

Additional Information

SKU COX ENL-N-360
Weight (lbs) 61.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Lubrication
Product PDF pm-001-spring-rewind-reels.pdf
Product Width (in) 8.50
Product Height (in) 21.75
Product Length (in) 21.88
Reel Bearings 1" Permanently Lubricated Precision Bearings
Construction Steel
Reel Design Enclosed
Drive Type Spring Driven
Hose Inner Diameter (I.D.) 3/8"
Hose Inlet 3/8" (F)NPT
Hose Length (If Included) 60'
Hose Max PSI 300
Hose Seal Type Nitrile
Hose Swivel Material Brass
Hose Outer Diameter (O.D.) 5/8"
Reel Finish Powder Coated
Reel Mounting Bench, Ceiling, Floor, Vehicle, Wall
Series EN Series
Reel Type Hose
