  • Coxreels 1680-1124 Hand Crank Hybrid Frame Hose Reel 1-1/2inx50ft no hose

More Views

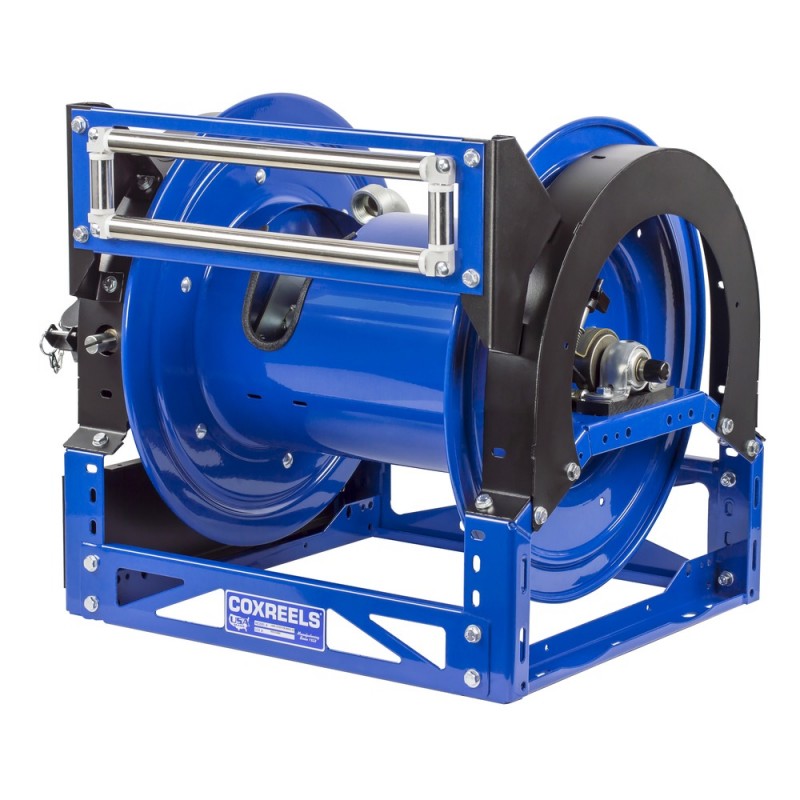

Coxreels 1680-1124 Hand Crank Hybrid Frame Hose Reel 1-1/2inx50ft no hose

COX 1680-1124

Availability: In stock ,Online Only

$797.19  /EA

Quick Overview

Coxreels 1680-1124 Hand Crank Hybrid Frame Hose Reel 1-1/2inx50ft no hose

Estimated Shipping Date
01/20/2025 - 02/27/2025

Be the first to review this product

Details

Series Description

COXREELS® 1600 Series features the most versatile symmetric reel design in the market today. This feature –rich reel series features nearly endless component configurations on a robust platform for any conceivable application. Targeted for the tough demands of customers requiring various dimensional choices, the series offers flexible size envelopes for any given hose capacity. The 1600 series hybrid frame offers unique accessories and upgrades which allow for application tailoring resulting in enhanced performance and usability.

Swivel/Slip Ring

  • Zinc plated steel fluid path with nickel plated steel inline swivel
  • NPT swivel inlet
  • Swivel Seals: NITRILE

Design and Structure

  • All welded hybrid frame with added bolts
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
  • Permanently lubricated self-aligning pillow block bearing for trouble-free & smooth rotation & robust lubricated horizontal surface mount bearing for easy rotation
  • Adjustable tension brake to prevent “free-wheeling” during operation
  • Long-handled locking pin to secure reel from rotation during transport or storage

Retraction

  • Reliable chain & sprocket drive on motor driven models
  • Solid steel direct hand crank with smooth round handle
  • All metal bevel crank and gear construction

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SWIVEL - Nickel plated steel inline NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
  • HYBRID FRAME - Sturdy one piece, all CNC robotically welded 12 ga steel "A" frame base, not bolted, for superior reel structure. With the strength of an "A" frame and the versitility of the a Box frame, the hybrid frame offers vertical sides for mounting and many optional features.
  • PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, zinc plating on steel plumbing, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.

Possible Applications

  • Construction
  • Fire & Safety
  • Military & Governement
  • Mining
  • Pressure Wash
  • Utility & Fleet

Additional Information

SKU COX 1680-1124
Weight (lbs) 77.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Construction, Fire & Safety, Military & Governement, Mining, Pressure Wash, Utility & Fleet
Product PDF pm-004-motorized-reels.pdf
Product Width (in) 24.88
Product Height (in) 25.25
Product Length (in) 24.00
Reel Bearings Permanently Lubricated Self Aligning Pillow Block Bearings
Construction Steel
Reel Design All Hybrid Frame
Drive Type Hand Crank
Hose Inner Diameter (I.D.) 1 1/2"
Hose Length (If Included) 50'
Hose Max PSI 1500
Hose Seal Type Nitrile
Hose Swivel Material Nickel Plated Steel
Reel Finish Powder Coated
Reel Mounting Floor, Vehicle, Wall
Series 1600 Series
Reel Type Hose
