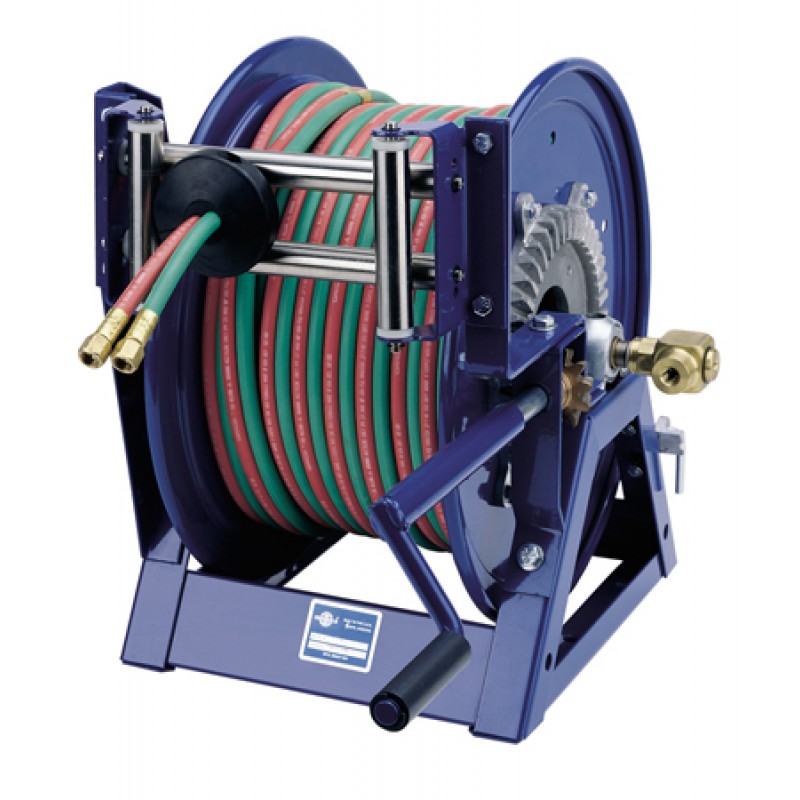

Coxreels 1275WL-3-150-C Bevel Geared Crank Welding Dual HoseReel 3/8inx150ft no hose

More Views

Coxreels 1275WL-3-150-C Bevel Geared Crank Welding Dual HoseReel 3/8inx150ft no hose

COX 1275WL-3-150-C

Availability: In stock ,Online Only

$753.01  /EA

Quick Overview

Coxreels 1275WL-3-150-C Bevel Geared Crank Welding Dual HoseReel 3/8inx150ft no hose

Estimated Shipping Date
12/06/2024 - 01/21/2025

Details

Series Description

COXREELS® 1275W Series hand crank or motorized “Welding” hose reels are built to manage long lengths of bulky twin line welding hose. The direct bevel gear drive, low profile outlet riser and open drum slot design are features greatly appreciated by the regular user. Dual brass swivel inlets on each side of the reel assure full flow trouble free performance.

Swivel/Slip Ring

  • Two external fluid paths with machined from solid brass 90° full-flow 3/8” NPT swivel inlets (1 on each side of the reel)
  • Swivel Seal: VITON®

Design and Structure

  • All welded steel “A” frame construction for superior reel structure
  • Exclusive low profile outlet risers & open drum slot design for flat smooth hose wrap
  • Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation

Retraction

  • Choice of motor or bevel gear hand crank

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • WELDING GAS SWIVEL -Dual machined from solid brass 90 full-flow 3/8" NPT swivel, one on each side for the real for simple VITON® seal maintenance ans ffast and easy hose installation.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and front bevel geared crank for easy mechanical retraction.

Possible Applications

  • Industrial
  • Hose & Rubber
  • Industrial MRO

Additional Information

SKU COX 1275WL-3-150-C
Weight (lbs) 48.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Hose & Rubber, Industrial, Industrial MRO
Product PDF pm-003-hand-crank-reels.pdf
Product Width (in) 22.88
Product Height (in) 18.63
Product Length (in) 17.63
Reel Bearings Permanently Lubricated Self Aligning Pillow Block Bearings
Reel Capacity 150'
Construction Steel
Reel Design "A" Shaped Frame
Drive Type Hand Crank
Hose Ends 3/8" (M)NPT
Hose Inner Diameter (I.D.) 3/8"
Hose Inlet 3/8" (F)NPT
Hose Length (If Included) 150'
Hose Max PSI 200
Hose Seal Type Viton
Hose Swivel Material Brass
Hose Outer Diameter (O.D.) 0
Reel Finish Powder Coated
Reel Mounting Floor, Vehicle, Wall
Series 1275W Series
Reel Type Specialty
