  • Coxreels 1185-1524 Hand Crank Hose Reel 1-1/2inx75ft 1500PSI no hose

More Views

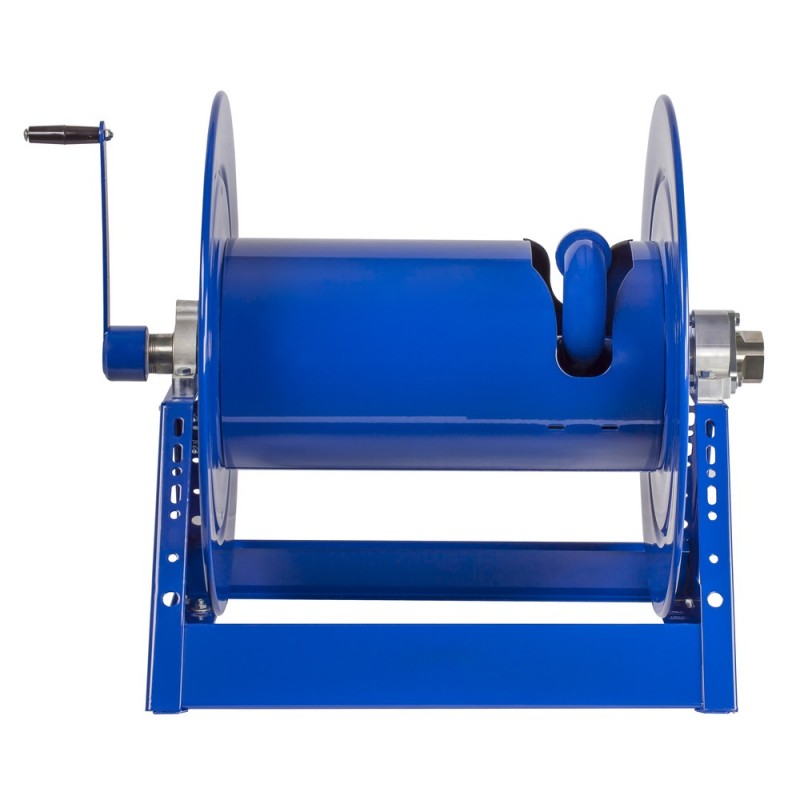

Coxreels 1185-1524 Hand Crank Hose Reel 1-1/2inx75ft 1500PSI no hose

COX 1185-1524

Availability: In stock ,Online Only

$768.34  /EA

Quick Overview

Coxreels 1185-1524 Hand Crank Hose Reel 1-1/2inx75ft 1500PSI no hose

Estimated Shipping Date
01/17/2025 - 02/26/2025

Be the first to review this product

Details

Series Description

COXREELS® 1185 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a noncrimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

Swivel/Slip Ring

  • External fluid path with in-line aluminum straight, full flow NPT swivel inlet
  • Swivel Seals: NITRILE
  • External fluid path with electroless nickel plated steel 90° full-flow NPT swivel inlet (On high pressure models with suffix -BUXX)
  • Swivel Seals: AFLAS (On high pressure models with suffix -BUXX)

Design and Structure

  • All welded steel “A” frame construction for superior reel structure
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
  • Robust lubricated horizontal surface mount bearings for easy rotation
  • Adjustable tension brake to prevent “free-wheeling” during operation
  • Long-handled locking pin to secure reel from rotation during transport or storage

Retraction

  • Reliable chain & sprocket drive on motor driven models
  • Solid steel direct hand crank with smooth round handle
  • See Motor Options Chart

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, long handled locking pin to secure reel, and direct hand crank for easy mechanical retraction.

Possible Applications

  • Aviation
  • Construction
  • Fire & Safety
  • Mining

Additional Information

SKU COX 1185-1524
Weight (lbs) 81.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Aviation, Construction, Fire & Safety, Mining
Product PDF pm-003-hand-crank-reels.pdf
Product Width (in) 29.00
Product Height (in) 26.00
Product Length (in) 24.00
Reel Bearings Lubricated Horizontal Surface Mount Bearings
Reel Capacity 75'
Construction Steel
Reel Design "A" Shaped Frame
Drive Type Hand Crank
Hose Ends 1 1/2" (M)NPT
Hose Inner Diameter (I.D.) 1 1/2"
Hose Inlet 1 1/2" (F)NPT
Hose Length (If Included) 75'
Hose Max PSI 1500
Hose Seal Type Nitrile
Hose Swivel Material Electroless Nickel Plated Steel
Hose Outer Diameter (O.D.) 2 1/16"
Reel Finish Powder Coated
Reel Mounting Floor, Vehicle, Wall
Series 1185 Series
Reel Type Hose
