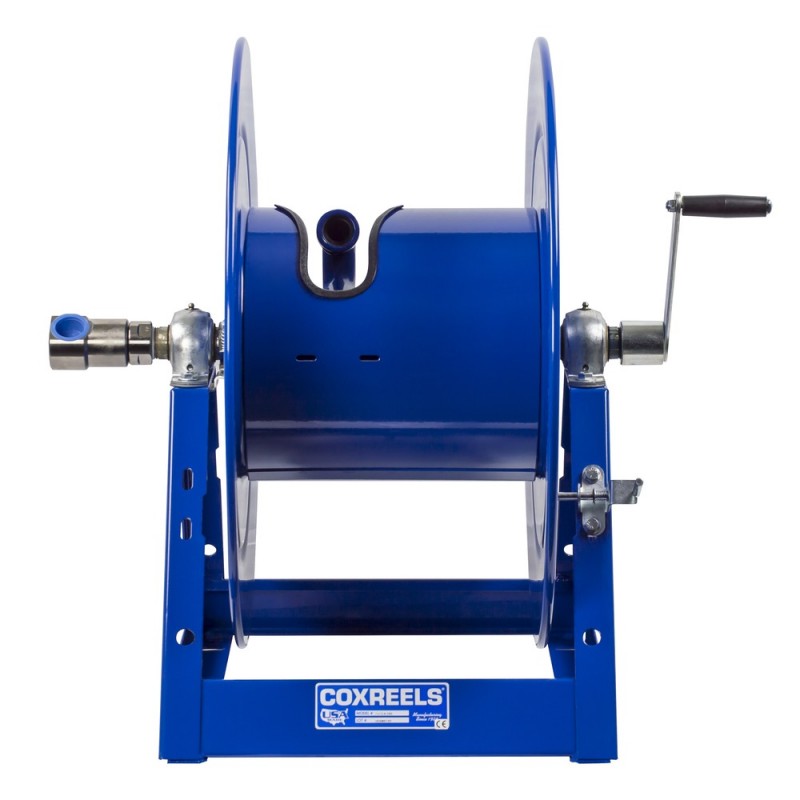

Coxreels 1175-6-100 Hand Crank Hose Reel 1inx100ft 3000PSI no hose

COX 1175-6-100

Availability: In stock ,Online Only

$648.33  /EA

Quick Overview

Coxreels 1175-6-100 Hand Crank Hose Reel 1inx100ft 3000PSI no hose

Estimated Shipping Date
Order by 1pm today and this "ReadyShip" reel ships the following business day! Limit 10 per SKU.

Details

Series Description

COXREELS® 1175 Series “” hand crank and motorized hose reels, like the 1125 Series, is an industry preferred design built with a larger chassis for larger hose capacities and hose diameters. They feature a sturdy one piece all welded “A” frame base, low profile outlet riser opendrum slot design for smooth even hose wraps around the drum.

Swivel/Slip Ring

  • External fluid path with nickel plated steel 90° full-flow NPT swivel inlet
  • Swivel Seals: AFLAS

Design and Structure

  • All welded steel “A” frame construction for superior reel structure
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
  • Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation
  • Adjustable tension brake to prevent “free-wheeling” during operation
  • Long-handled locking pin to secure reel from rotation during transport or storage

Retraction

  • Reliable chain & sprocket drive on motor driven models
  • Solid steel direct hand crank with smooth round handle
  • See Motor Options Chart

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SWIVEL - Nickel plated steel 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PILOW BLOCK BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.

Possible Applications

  • Agricultural
  • Aviation
  • Construction
  • Fire & Safety
  • Mining

Additional Information

SKU COX 1175-6-100
Weight (lbs) 67.0000
Country of Manufacture United States
Brand COXREELS
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Agricultural, Aviation, Construction, Fire & Safety, Mining
Product PDF pm-003-hand-crank-reels.pdf
Product Drawing(s) No
Product Width (in) 28.13
Product Height (in) 26.13
Product Length (in) 24.00
Reel Bearings Permanently Lubricated Self Aligning Pillow Block Bearings
Reel Capacity 100'
Cable Amps No
Cable Gauge No
Cable Length No
Cable Volts No
Construction Steel
Cord Amps No
Cord AWG No
Cord Length No
Cord Type No
Cord Amps No
Reel Design "A" Shaped Frame
Drive Type Hand Crank
Duty Rating No
Hose Ends 1" (M)NPT
Hose Inner Diameter (I.D.) 1"
Hose Inlet 1" (F)NPT
Hose Length (If Included) 100'
Hose Max PSI 3000
Hose Seal Type AFLAS
Hose Swivel Material Nickel Plated Steel
Hose Outer Diameter (O.D.) 1 7/16"
Reel Finish Powder Coated
Reel Mounting Floor, Vehicle, Wall
Series 1175 Series
Reel Type Hose
