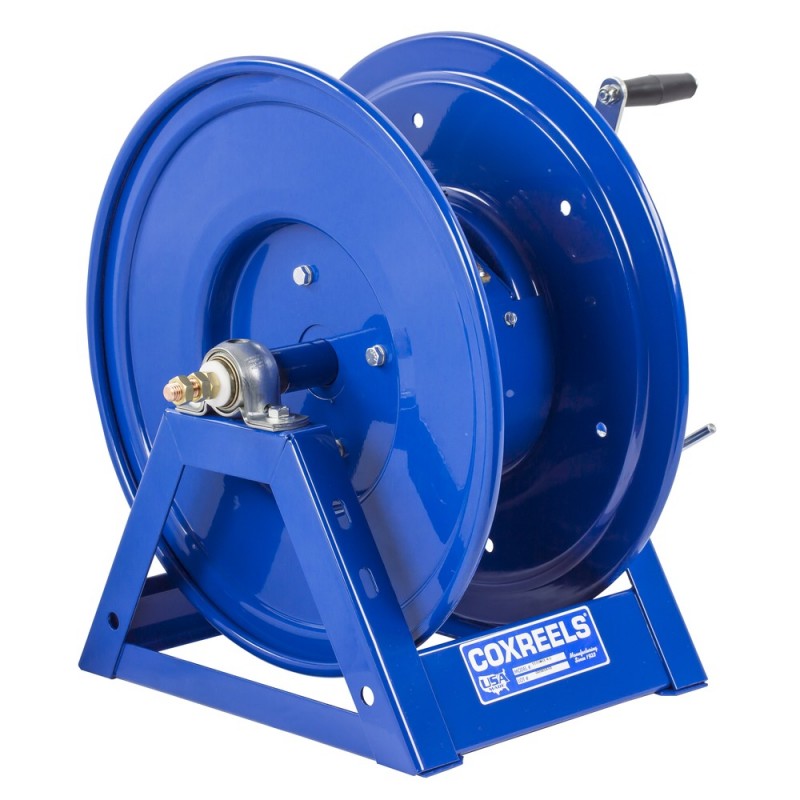

Coxreels 1125WCL-12-C Hand Crank Welding Cable Reel Up to 2AWGx600ft no cable

COX 1125WCL-12-C

Availability: In stock ,Online Only

$592.27  /EA

Quick Overview

Coxreels 1125WCL-12-C Hand Crank Welding Cable Reel Up to 2AWGx600ft no cable

Estimated Shipping Date
This high quality, industrial hose reel is built to order and takes some time to produce. Please allow approximately 15 business days for this item to ship, depending on current demand.


Series Description

COXREELS® 1125WCL Series hand crank or motorized “Welding Cable” reels are great for grounding cable. Save time and effort as you extend the life of your expensive welding cable investment. All electrical components are set inside the drum offering a special narrow width. A stacking bracket is available to create a lead/ground combination in one organized unit.

Swivel/Slip Ring

  • Drum-located slip ring assembly for simple routine maintenance
  • Electrical current runs through a 450 AMP rated slip ring

Design and Structure

  • Designed for electrode & grounding lead applications
  • All welded steel “A” frame construction for superior reel structure
  • Narrow width for convenient installation in restricted spaces
  • Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation
  • Adjustable tension brake to prevent “free-wheeling” during operation
  • Long-handled locking pin to secure reel from rotation during transport or storage


  • Reliable direct gear drive on motor driven models
  • Solid steel direct hand crank with smooth round handle
  • See Motor Options Chart

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Additional Features and Benefits

  • SLIP RING ASSEMBLY - Drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • LOCKING PIN - Long-handled locking pin secures reel from rotation during storage or transportation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and bevel geared crank.

Possible Applications

  • Construction
  • Industrial
  • Hose & Rubber
  • Industrial MRO

Additional Information

SKU COX 1125WCL-12-C
Weight (lbs) 38.0000
Country of Manufacture United States
Manufacturer Warranty 24 months Limited Parts / No Labor
Product Markets Construction, Hose & Rubber, Industrial, Industrial MRO
Product PDF pm-003-hand-crank-reels.pdf
Product Width (in) 24.75
Product Height (in) 18.50
Product Length (in) 17.50
Reel Bearings Permanently Lubricated Self Aligning Pillow Block Bearings
Reel Capacity 600'
Cable Amps 450
Cable Gauge #2 - #1 - #1/0 - #2/0
Cable Length 300', 400', 500', 600'
Construction Steel
Reel Design "A" Shaped Frame
Drive Type Hand Crank
Reel Finish Powder Coated
Reel Mounting Floor, Vehicle, Wall
Series 1125WCL Series
Reel Type Specialty
